Fuel Management Systems
Comprehensive fuel oil handling systems, transfer pumps, filtration, and monitoring solutions for reliable fuel supply and management.
Request QuoteFuel Management Systems Overview
MIDRAR INTEGRATED designs Fuel Management Systems to continuously monitor and control fuel levels, provide leak detection and alarms for double wall tanks and piping sumps, as well as control fuel pumps and valves for boiler and emergency generator fuel system applications.
System Benefits
Single-Source Responsibility
Eliminates installation problems from multiple suppliers
Seamless Interface
Improved overall system performance and reliability
Trouble-Free Installation
Fully engineered systems packaged and supplied by MIDRAR
Our Product Range
Complete range of fuel management equipment and systems
Automatic Fuel Oil Transfer Pump Set
Revolutionary duplex pump sequencing and monitoring system with automatic Lead/Lag pump features that improve fuel system availability and uptime.
Features:
- NEMA 4 Enclosure
- Automatic Lead/Lag
- Alarm and event summaries
- Fuel Sentry Available
- Color touch screen included
- RS-485 communications
Automatic Fuel Oil Filtration Sets
The most complete, efficient, and reliable engine protection systems one can install. Self-contained, fully automatic systems remove water, suspended rust, sludge, dirt, and other contaminants.
Features:
- Cast-iron internal gear pumps
- Safety shutdown
- Standard Flows From 180-1200 GPH
- Color touch screen
Fuel Oil Transfer Pump and Day Tank Package
Provides local supply of distillate or diesel fuel for boilers, emergency generators, or other stationary engine driven or oil-fired equipment.
Features:
- Standard flows from 23 to 1600 GPH
- Micro-processor based
- 4" color touch screen
- RS-485 communications
- New FSC controller
Waterproof Pumps
MIDRAR INTEGRATED WP Series Waterproof Pump enclosures include the pump and motor assembly, discriminating oil/water leak detector, sealed high voltage wire and conduit pigtail.
Features:
- Available in pump sizes (20 to 1100 gph)
- 115, 208 or 230V 60Hz 1 phase
- 208, 230 or 460V 60Hz 3 phase
- Sealed electrical connections
- Flood-resistant design
System Components
Essential components for complete fuel management systems

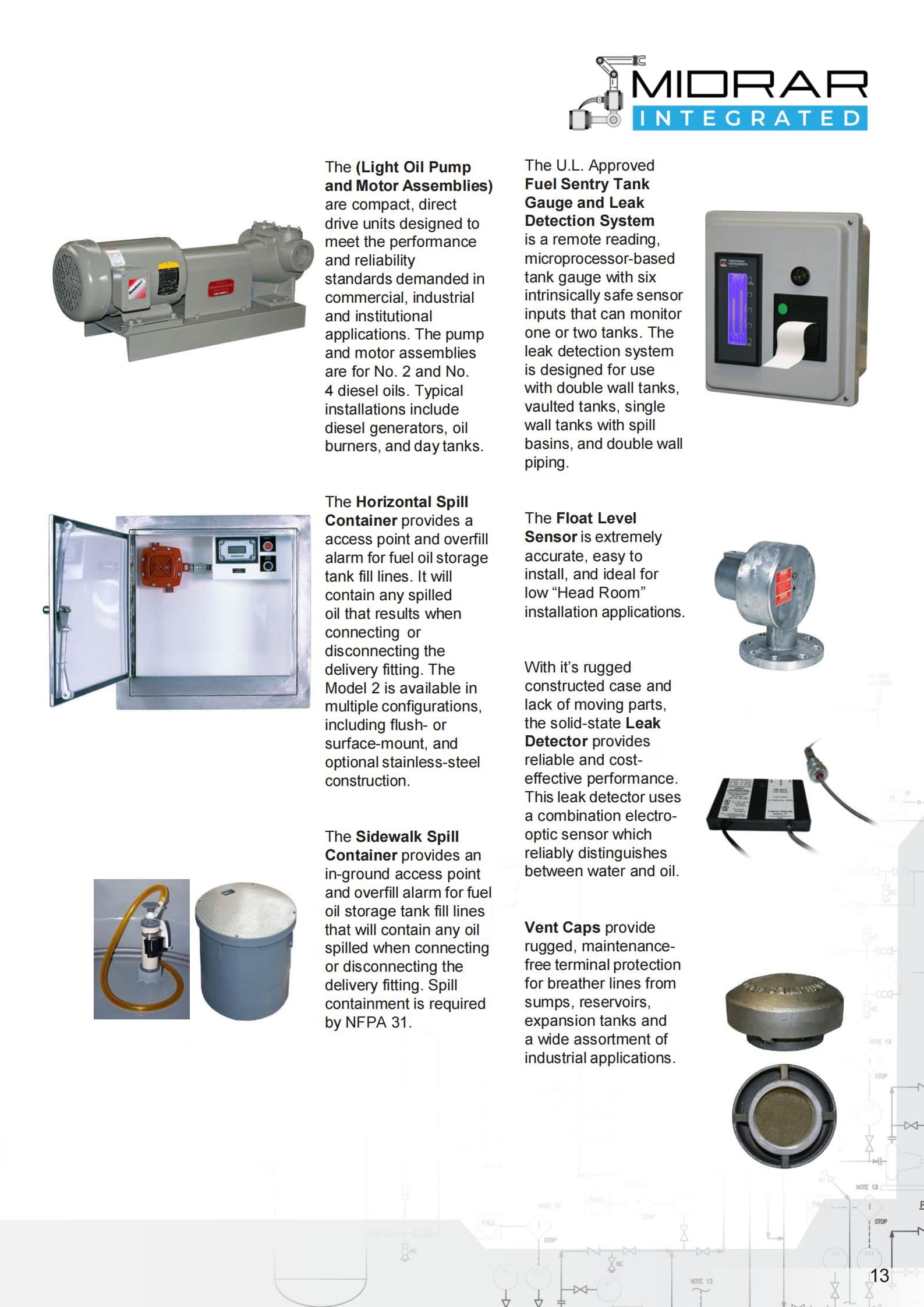

Fuel Sentry Tank Gauge
U.L. Approved remote reading, microprocessor-based tank gauge with six intrinsically safe sensor inputs that can monitor one or two tanks.
Float Level Sensor
Extremely accurate, easy to install, and ideal for low "Head Room" installation applications.
Leak Detector
Solid-state leak detector with combination electro-optic sensor which reliably distinguishes between water and oil.

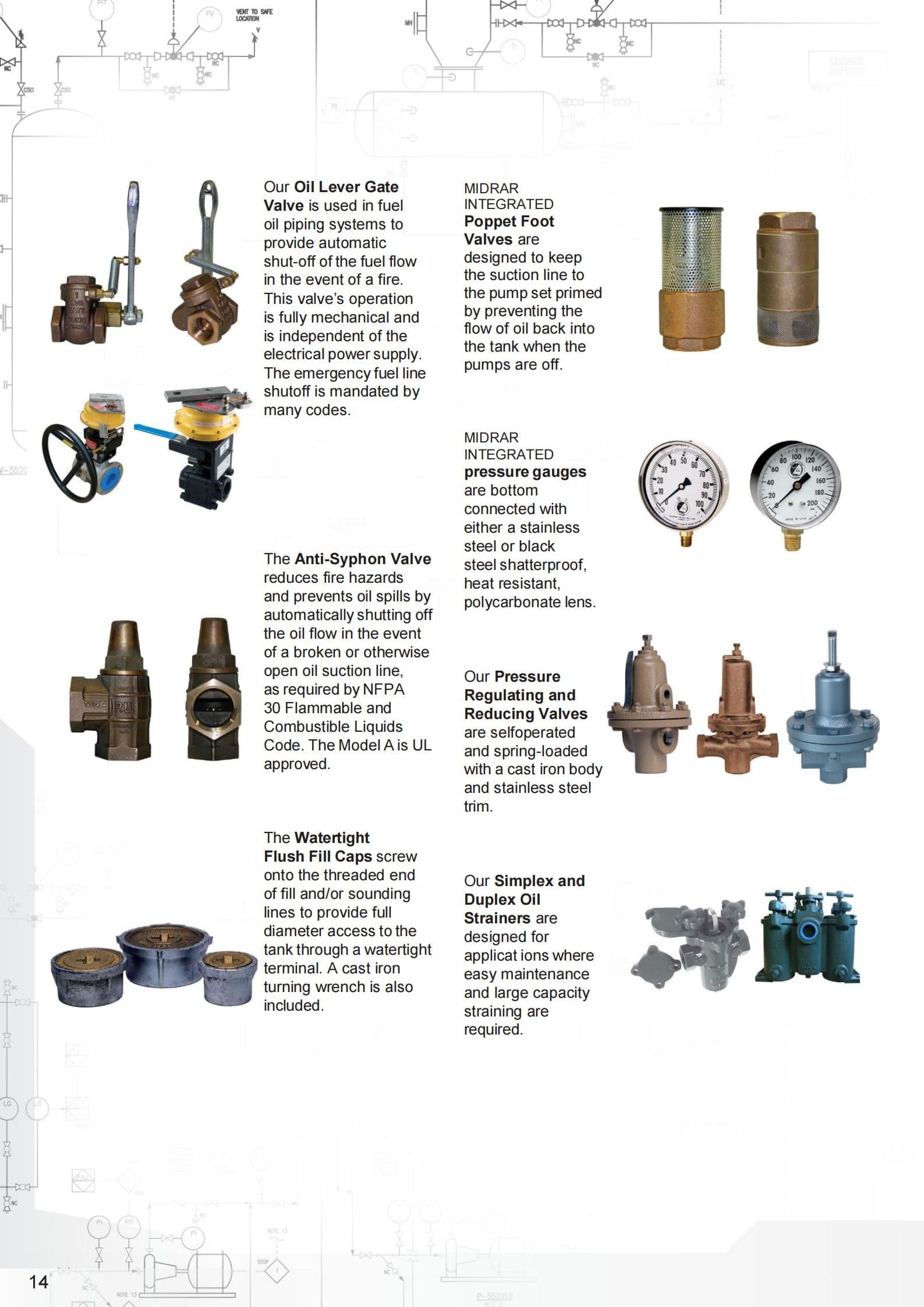

Oil Level Gate Valve
Used in fuel oil piping systems to provide automatic shut-off of fuel flow in the event of a fire.
Anti-Syphon Valve
Reduces fire hazards and prevents oil spills by automatically shutting off oil flow in the event of a broken or open oil suction line.
Pressure Gauges
Bottom connected with either stainless steel or black steel shatterproof, heat resistant, polycarbonate lens.
Applications
Typical applications include multiple day tank systems, multiple main storage tank systems, remote fill systems, automatic tank selection and sequencing, and automatic filtration.
Emergency Generators
Reliable fuel supply systems for backup power generation
Marine Applications
Fuel management for ships and offshore platforms
Industrial Plants
Fuel systems for industrial boilers and equipment
Hospitals
Critical fuel supply for medical facility backup systems
Project Gallery
Representative equipment and installations from our fuel management projects
Technical Information
Fuel Transfer & Filtration
Control Systems
Need a Fuel Management Solution?
Contact our experts to discuss your fuel system requirements and get a customized solution.
